If your new dryer plug does not fit the outlet in your laundry room, you may have run into a common problem: a 3-wire vs 4-wire dryer outlet mismatch.
Many older homes in Denver still have a 3-wire outlet. Newer homes and new dryer circuits usually use a 4-wire outlet. The main difference is how the dryer is grounded.
A 4-wire connection has a separate ground wire. This adds an important layer of electrical safety.
Here is what homeowners should know before replacing a dryer cord or outlet.

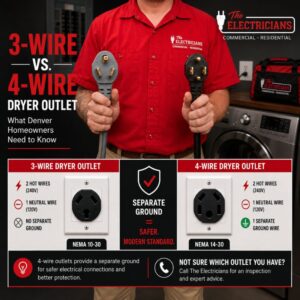

What Is the Difference Between a 3-Wire and 4-Wire Dryer Outlet?
The difference between a 3-wire and 4-wire dryer outlet comes down to grounding.
A traditional 3-wire outlet has:
- Two hot wires
- One neutral wire
- No separate ground
A modern 4-wire outlet has:
- Two hot wires
- One neutral wire
- One separate ground wire
An electric dryer normally uses 240 volts of electricity for the heating element. It may also use 120 volts for controls, lights, and other parts.
In older 3-wire electrical connections, the neutral wire also helped provide the grounding path. Modern electrical codes separate those functions.
That is why a 4-wire outlet is now the standard choice for new dryer wiring.
Why Did Dryer Outlets Change to Four Wires?
The change was made to improve safety features.
With older dryer wiring, the neutral and grounding functions were connected. Modern electrical wiring uses a separate path for grounding.
That means the white wire normally serves as the neutral, while the ground wire provides protection if a fault occurs.
The two hot wires may include black and red wires. Together, they supply the voltage needed by the electric dryer.
Separating the neutral and ground reduces the chance that an electrical problem could energize the metal body of the appliance.
Learn more about electrical wire color code standards.
Are 3-Wire Dryer Outlets Still Allowed?
A 3-wire outlet in an older home does not always need to be replaced immediately.
Some older electrical systems may continue using an existing 3-wire dryer circuit if it was installed under previous electrical codes and has not been changed.
However, new dryer circuits should normally use modern four-wire electrical connections.
You may also need an upgrade if you:
- Move your dryer
- Remodel your laundry room
- Replace old electrical wiring
- Install a new dryer circuit
- Discover damaged wiring or connections
A licensed electrician can inspect the existing electrical system and determine what is required.
Can You Replace a 3-Wire Outlet With a 4-Wire Outlet?
Not always.
Changing the receptacle and cover plate is only part of the job.
A proper 4-wire outlet needs four conductors in the electrical wiring: two hot wires, one neutral wire, and one ground wire.
If the existing circuit only has three conductors, simply installing a 4-wire dryer outlet will not create a proper ground.
In that case, new wiring may need to be run from the electrical panel to the dryer outlet.
This is why a dryer outlet upgrade can be more involved than it first appears.
Can You Change the Dryer Cord Instead?
Sometimes.
Many electric dryers allow the dryer cord to be changed between an approved 3-prong and 4-prong configuration.
However, the electrical connections inside the dryer must also be configured correctly.
A 4-prong dryer normally keeps the neutral wire and ground separate. A 3-prong dryer configuration may use a bonding connection between the neutral and appliance frame.
Installing the wrong dryer cord or connecting the wires incorrectly can create a shock risk.
Always follow the appliance manufacturer’s instructions or have a licensed electrician make the change.
What If My Dryer Plug Does Not Match the Outlet?
Do not force it and do not rely on an adapter as a permanent fix.
First determine which type of dryer outlet you have.
A 3-wire dryer outlet usually has three openings.
A 4-wire dryer outlet has four openings.
If your dryer plug does not match, the best solution depends on the electrical wiring behind the outlet and the requirements of the appliance.
The outlet itself only tells part of the story.
How Much Does a Dryer Outlet Upgrade Cost in Denver?
The cost depends on how much electrical work is needed.
A simple outlet replacement can be fairly straightforward when the correct wiring is already in place.
The project becomes more expensive if new wiring must be installed between the electrical panel and laundry room.
Cost can also increase because of:
- Long wire runs
- Finished walls or ceilings
- Difficult panel access
- Electrical panel repairs
- Permit requirements
- Damaged electrical connections
For that reason, an electrician usually needs to inspect the existing circuit before giving an exact price.
Does a Gas Dryer Need a 240-Volt Outlet?
Usually, no.
A gas dryer uses natural gas for heat and typically uses a standard 120-volt electrical outlet for the motor and controls.
An electric dryer usually needs a dedicated 240-volt dryer outlet.
If you are switching from a gas dryer to an electric dryer, you may need a new 240-volt circuit installed.
Should You Upgrade a 3-Wire Dryer Outlet?
Upgrading can make sense even if your existing 3-wire outlet is still working.
A modern 4-wire outlet provides a separate grounding path and matches the connection used by most newer electric dryers.
It is especially worth considering when you are already remodeling or replacing electrical wiring.
Older homes may also have other issues worth checking, including loose electrical connections, worn outlets, damaged ground wires, or outdated electrical panels.
When Should You Call an Electrician?
Call a licensed electrician if:
- Your dryer plug does not match the outlet
- The outlet looks burned or damaged
- The breaker keeps tripping
- You smell burning
- The dryer gives you a shock or tingling feeling
- You need a new dryer circuit
- You are unsure if a separate ground is present
Do not remove the cover plate and handle live wiring unless you are qualified to work on the electrical system.
3-Wire vs 4-Wire Dryer Outlet: Which Is Better?
For new electrical work, a 4-wire outlet is the better choice.
It uses two hot wires, a neutral wire, and a separate ground. This design meets modern electrical safety practices and works with most newer electric dryers.
An existing 3-wire outlet may still be acceptable in some older homes, but that does not mean a new 3-wire circuit should be installed today.
If you are unsure what your home has, The Electricians can inspect the dryer outlet and electrical wiring and recommend the right solution.
Need a Dryer Outlet Upgrade in Denver?
If your dryer cord does not match your outlet, do not assume you only need a different plug.
The Electricians can check your existing wiring, determine whether you have a 3-wire or 4-wire connection, and install the correct dryer outlet when needed.
Whether you need a simple outlet replacement or a new 240-volt circuit, our licensed Colorado electricians can help make sure the work is completed safely and correctly.
